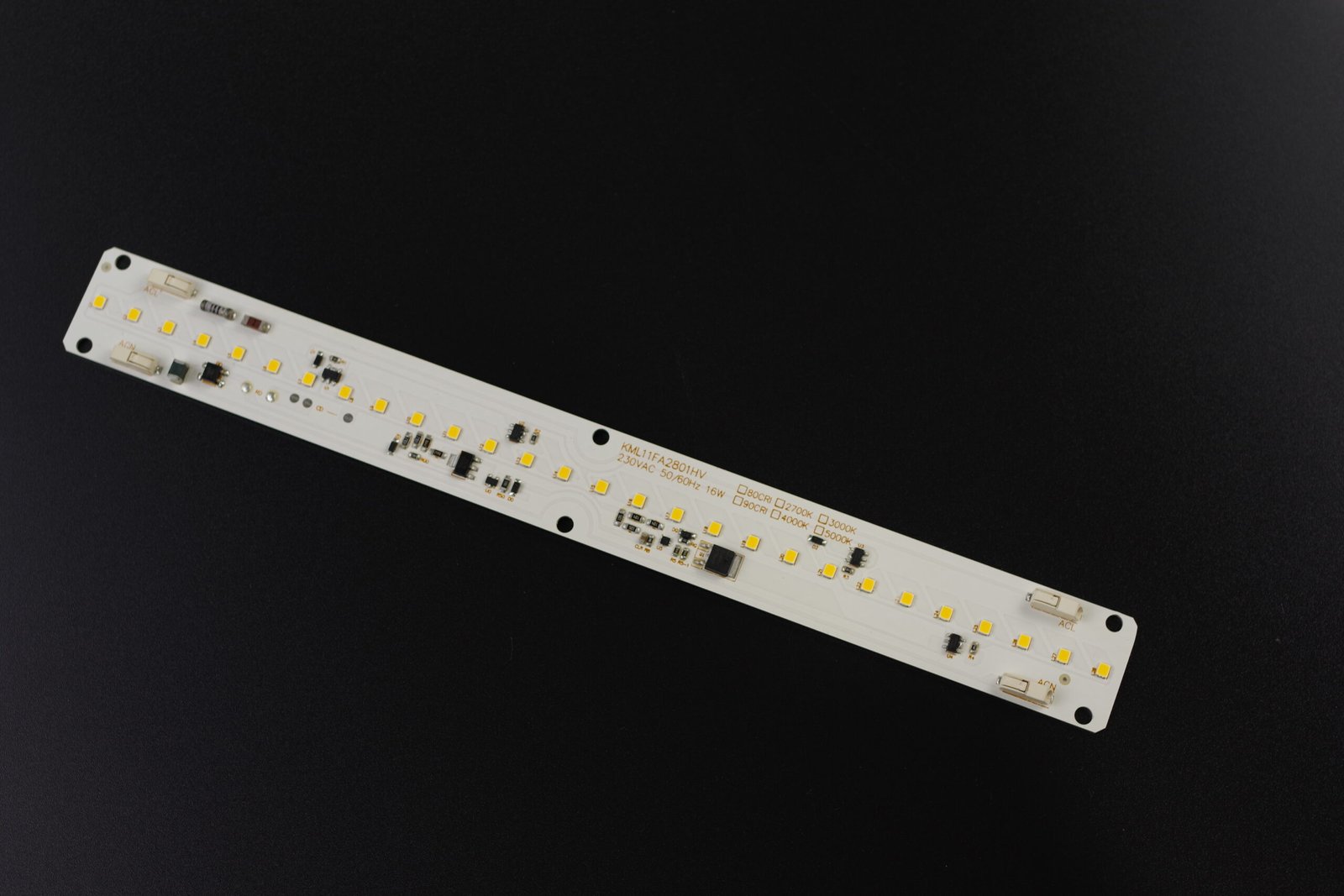

HV. LINEAR MODULE 230VAC

BUILT-IN LED MODULES WITH INTEGRATED DRIVER FOR OPERATION ON MAINS VOLTAGE.

Characteristics: Thermal Resistance 0.4℃/W（P<30W）, Operation tempt -40℃~85℃

ESD(Direct Contact) :8KV

Hi-Pot Level : 1.5KV

Surge Level: 2.5KV



Category:

Description

TECHNICAL FEATURES:

Main voltage: 220-240V,50-60HZ
Power Factor: >0.95
Efficiency: 100lm/w
Dimensions : 280x30mm
THD % : <15%
Aluminum circuit board for optimal thermal management.
For luminaire of protections CLASS II

Typical Areas of Application:

• Replacement for compact fluorescent lamps
• Installation in lights
• Living space lighting
• Architectural lighting
• Shop lighting
• Furniture lighting

Additional information

Code

KML11FA2801HV
Dimensions(LxWxH):

280x30x1.6mm
Power

16W
Dimmable

TRIAM DIM
Efficiceny(tc=25℃）

105-110lm/w
Input Voltage

VAC 230V
Flux/lm(tc=25℃）

1760lm@4000K
THD

<15%
Power Factor

>0.95
Available CCT

2700K/3000K/4000K/5700K
