Description

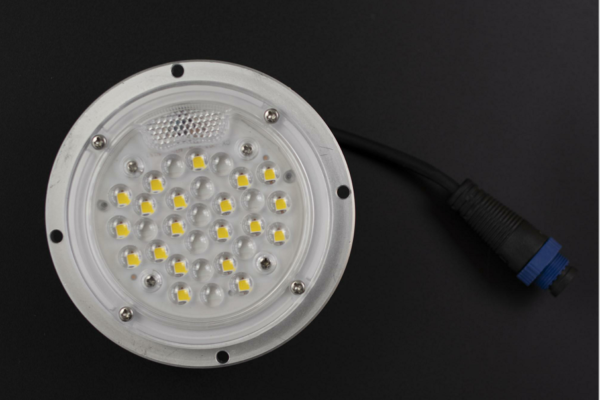

Ready to use- Assembled unit
Equipped with LED Industry Kit SMD & Optics & Heat Sink
Assembly unit consisting of the printed circuit board, optics with silicone gasket, heat sink with cable thread, and connected leads.
- Using EMC3030 LEDs, with high luminous efficiency and low heat
- Modules maximum luminous efficiency is up to 180lm/W
-
120° beam angle, transparent& high-glossy
-
Incl. silicone gasket for a higher degree of protection
-
Suitable for luminaires with impact rating requirements and water resistance.
- Electrical Safety Class II
- Long Extended lifetime: >54,000Hrs
- Materials: Al6063-T5+Pc
Strong Features
- Outer shape meets CSA 016-2016 design, fit to all lighting fixtures；
- Preassembled with M15(or M18) the waterproof connector, simple and convenient for installation
- Module electrical performance parameters designed to comply with the mainstream LED power supply from the market
- Modular Kit past boiling red ink test, with high reliability in waterproof IP66 performance
- Uniform and homogenous light distribution rely on our usage of anti-UV high-quality optics
- Excellent and unique feature of thermal management, controlling LED kit temperature below 60℃
-
Impact protection test past
- No mercury and other harmful elements belong to environmentally friendly products
Typical Application of luminaires:
- Street Lighting
- Flood Lighting
- Work Lighting
- Garden Lighting
