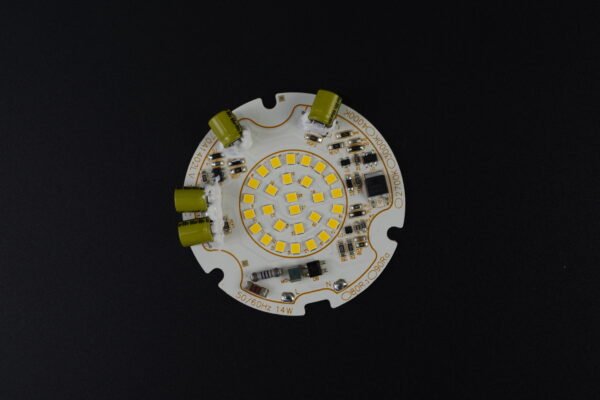

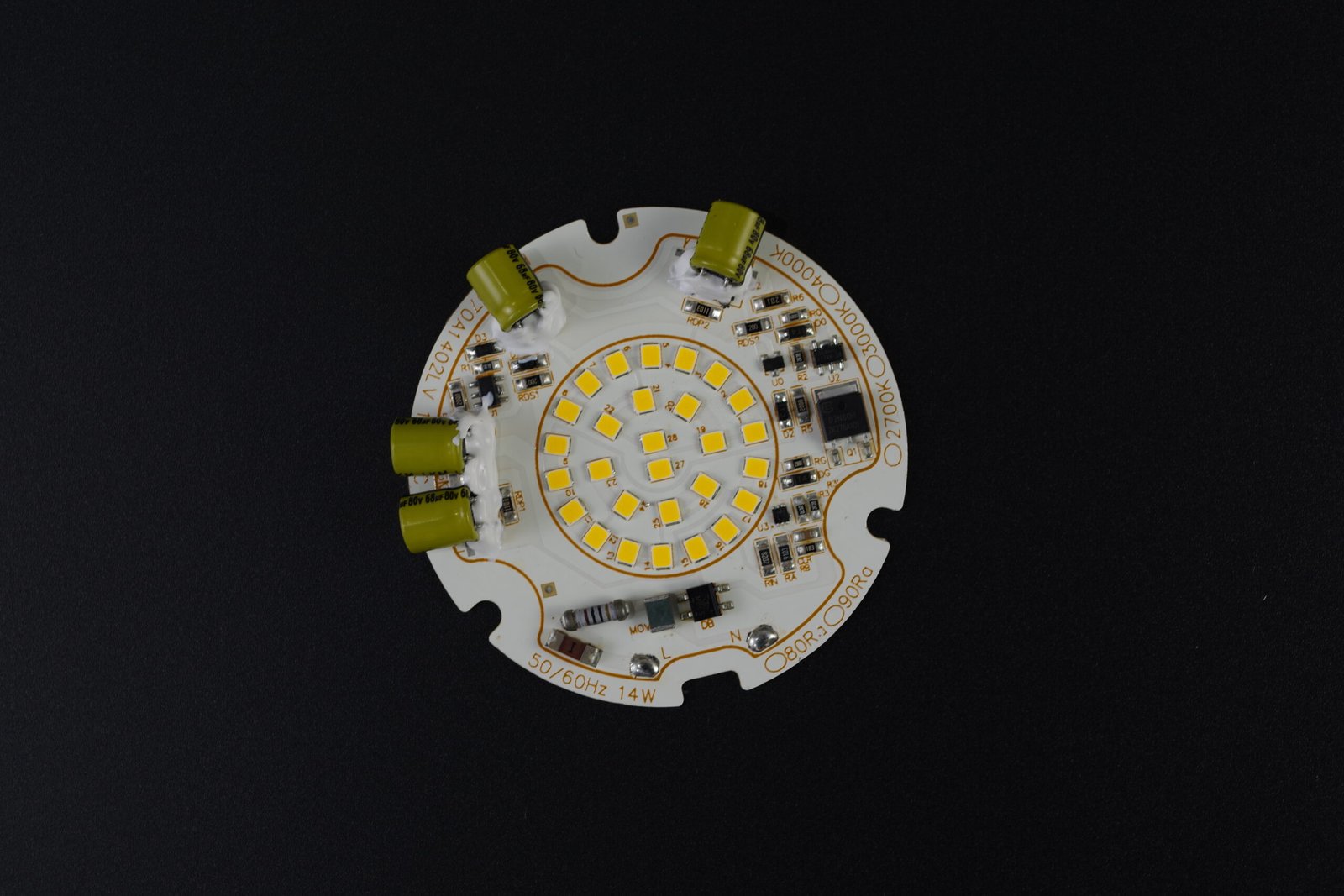

Round Series -AC KMD1. Ø70mm-120V

AC SYSTEM OPERATIONS FOR MAIN VOLTAGE 220-240V –

WITH INTEGRATED DRIVER

AC KMD1. Ø70mm is workable for direct connection to the city electricity voltage with the so-called drive-on-board technology( DOB), the control gear is integrated directly on the led modules and thus allows direct connection to AC220-240V(50-60HZ)

Category: Tags: ,

Description

Photoelectricity Features:

  • TRIAC DIM
  • Mains voltage: 110-130V, 50-60HZ
  • Power Factor: >0.95
  • Flicker： <28%
  • Dimensions:  Ø70mm
  • Power: 14W/16W
  • Extended lifetime > 50.000 h.
  • High CRI up to 90



Characteristics:

  • Surge Level: 1.5KV
  • Hi-Pot Level: 2.5KV
  • Aluminum Circuit Board for optimal thermal management.
  • Thermal resistance : 0.4 ℃/W (P≤30W)
  • ESD(Direct contact) : 8KV

Additional information

Code

KMD1070A1402LV
Dimensions:

Ø 70mm
Power

14W; 16W options
Input Voltage

120V AC
Efficiency lm/w (tc=25℃）

100lm/w
Flicker percentage

<28%
Dimmable

TRIAC DIM
Flux (tc=25℃)/lm

1260lm@14W; 1600lm@16w
Available CCT

2700K/3000K/4000K/5700K
CRI/Ra

>80 (90 on request)
